PARS 4x4TACTICAL LIGHT
ARMORED VEHICLE

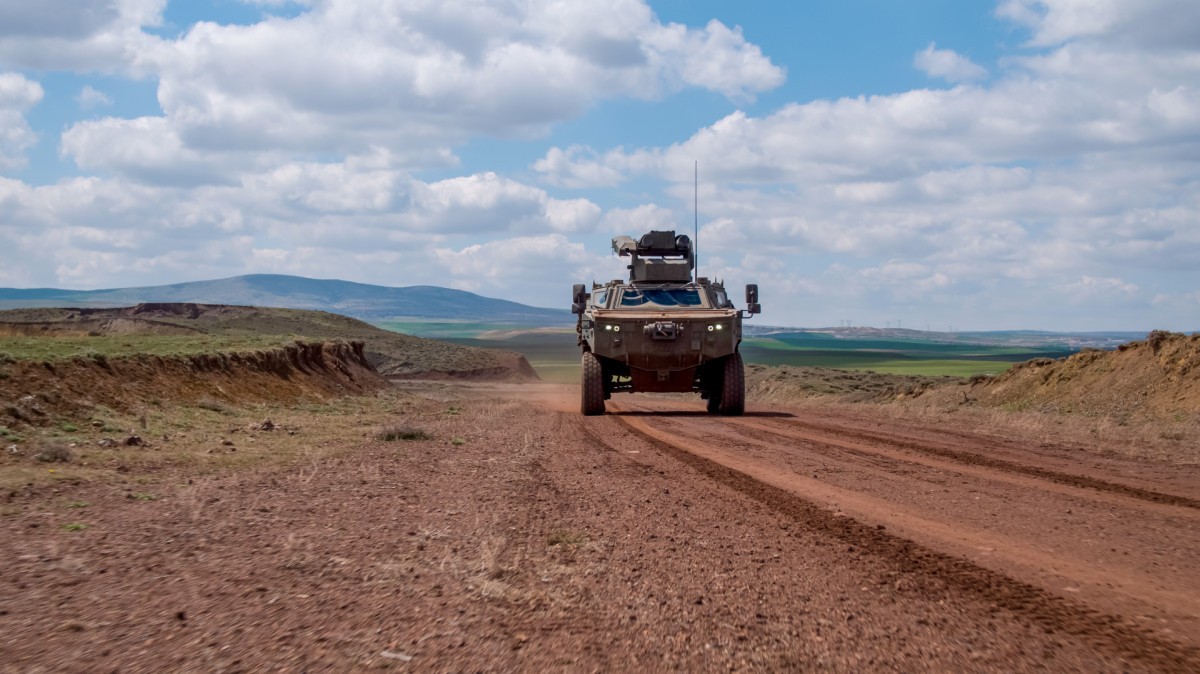

About PARS 4x4
The PARS 4x4 is designed to undertake special operational roles such as advanced surveillance, anti-tank and command and control.
The PARS 4x4 features an amphibious design and a low profile. Without any prior preparation, the vehicle and its crew of four may operate in deep and swiftly moving waters. The vehicle's improved propulsion and maneuverability in the water are provided by two propellers situated in the rear.
The PARS 4x4's low center of gravity, completely independent suspension system, ABS-assisted hydraulic disc brakes, low ground pressure, and enhanced approach and departure angles allow it to run on any rocky terrain. The PARS 4x4 can hold on 40% side slopes and ascend 70% vertical slopes. Additionally, it can easily handle vertical impediments that are 0.4 meters high. The vehicle has the capacity to perform self-recovery when necessary thanks to the hydraulic recovery winch, which is situated at the front of the vehicle.
Transparent ballistic armor in the driver's cabin provides a broad field of vision for the driver and the crew. The PARS 4x4 also offers the commander and driver integrated night and day vision cameras, allowing for nighttime operations with or without the use of blackout lights. The commander, driver, gunner, and dismounts have their own command and warning panels, as well as height-adjustable mine-protected seats.
- Power-to-weight Ratio: 25 Hp/ton
- Crew: 4
- Length: 5 m
- Width: 2.6 m
- Height Overall: 3.1 m
- Height Hull Roof: 2.1 m
- Air Transportation: C-130H, A400, C-17, C-5
- Turning Radius: 7.5 m
- Max. Water Speed: 6.5 km/h
- Max. Road Speed: 110 km/h
- Ballistic Protection: STANAG 4569 (Level Classified)
- Mine Protection: STANAG 4569 (Level Classified)
- Smoke Grenade Dischargers: 8
- Automatic Fire Suppression System: Standard
- CBRN Protection System: Standard
- A/C and Heater: Standard
GRADIENT
70%
TRENCH CROSSING
0.8 m
SIDE SLOPE
40%
OBSTACLE CLIMBING
0.4 m
